How to Choose a Centrifugal Oil Pump in 2026?

Choosing a centrifugal oil pump in 2026 requires more than matching a flow rate to a catalog curve. Oil markets are changing, while energy, reliability, and emissions pressures are increasing. The International Energy Agency’s Oil 2024 report expects global oil demand growth to slow considerably through 2030. That shift makes efficient, adaptable equipment increasingly important across refineries, terminals, pipelines, and process plants.

The U.S. Department of Energy identifies pumping systems as a major industrial electricity load, often representing about 20% to 25% of industrial electricity consumption. A small efficiency loss can therefore become a large operating cost. A suitable centrifugal oil pump must match viscosity, temperature, flow, differential pressure, suction conditions, and operating hours. Engineers should also examine NPSH margin, seal selection, metallurgy, hazardous-area requirements, and compatibility with variable-speed drives. API 610 remains a key reference for many petroleum and petrochemical applications, but compliance alone does not guarantee the best selection.

Details matter.

A pump that performs well with warm, light oil may struggle with cold, heavy oil during startup. Excessive viscosity can reduce capacity, increase motor loading, and distort expected performance. Field assessments often reveal another weakness: systems are selected around peak demand, then operate far from the best efficiency point for most of the year. That approach is safe on paper, but not always economical. This guide examines pump curves, lifecycle cost, maintenance access, sealing risks, and supplier evidence. It also questions common assumptions, because a polished specification can still conceal poor suction design or unrealistic operating data. Reliable decisions require verified test results, traceable standards, and practical knowledge from the actual installation.

Table of Contents [Hide]

1 Centrifugal Oil Pump Basics and Operating Principles

2 Define the Required Flow Rate, Pressure, and Oil Properties

3 Compare Pump Materials, Configurations, and Drive Options

4 Evaluate Efficiency, Safety Features, Maintenance, and Compatibility

5 Select and Verify the Best Pump for Your 2026 Application

Centrifugal Oil Pump Basics and Operating Principles

A centrifugal oil pump moves liquid by adding velocity, not pressure directly. The rotating impeller accelerates oil from the eye toward its outer diameter. A volute or diffuser then converts velocity into useful pressure. This is the basic operating principle. The casing must remain filled, because air can interrupt stable flow. At startup, confirm suction valves, oil level, rotation, and venting.

Oil is more demanding than clean water. Higher viscosity increases friction and usually reduces flow, head, and efficiency. Temperature changes viscosity quickly, especially in heavy oils. Hydraulic Institute ANSI/HI 9.6.7-2021 provides methods for evaluating viscosity effects. Check NPSH available against NPSH required, with a realistic safety margin. Cavitation may sound like gravel inside the casing. It can damage the impeller and destabilize the shaft seal. That symptom deserves investigation, not a larger pump.

Sizing begins with duty point: flow, differential pressure, temperature, viscosity, and density. Then compare the curve near its best efficiency point. The U.S. Department of Energy reports that pumping systems can represent about 25% of industrial motor energy use. Small efficiency losses become expensive over long operating hours. Variable-speed control can help when demand changes, but throttling may hide poor sizing. API 610 remains a key reference for petroleum and petrochemical centrifugal pumps. A spreadsheet is useful, but field data can disagree. Recheck actual pressure and temperature after commissioning. Perfect assumptions rarely survive the first week.

Define the Required Flow Rate, Pressure, and Oil Properties

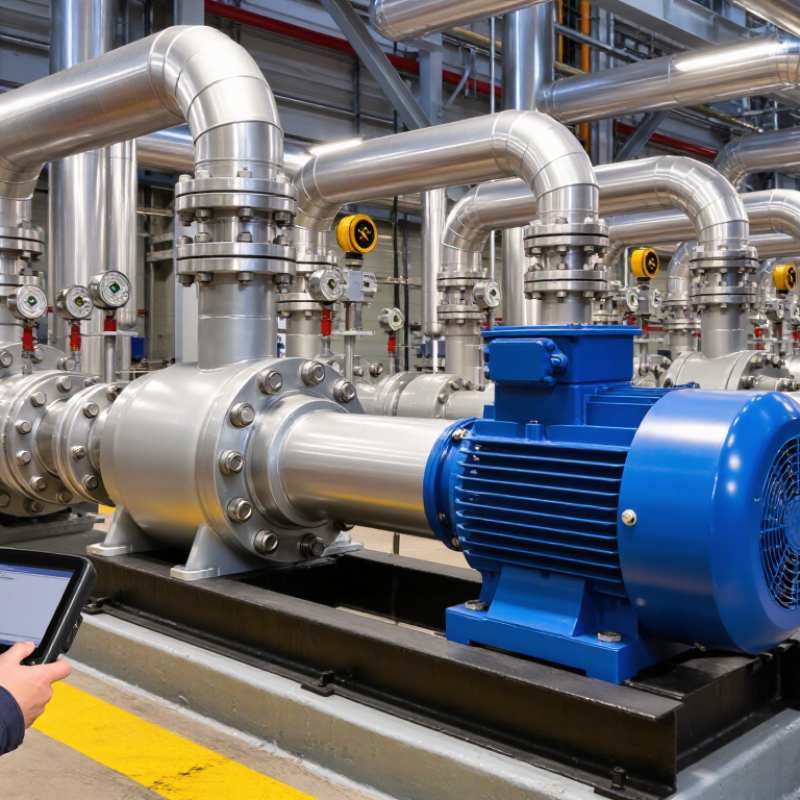

How to Choose a Centrifugal Oil Pump in 2026?

Selecting a centrifugal oil pump starts with three measurable inputs: flow rate, pressure, and oil properties. Estimate flow from actual tank turnover, heat removal, or lubrication demand. Do not copy the pipe size. A larger pipe may still deliver insufficient flow.

The U.S. Department of Energy’s Pumping System Assessment Tool notes that pumping systems can represent about 25% of industrial motor energy use. Efficient sizing matters. Calculate total dynamic head, including elevation, friction, valves, filters, and the required discharge pressure. Use operating data, not only the nameplate rating. A pump delivering 60 m³/h at 4 bar may fail if the system needs 60 m³/h at 7 bar.

Oil viscosity requires closer attention. ISO 3448 classifies industrial lubricants by kinematic viscosity at 40°C. Yet oil can become dramatically thicker during cold startup. Check viscosity at minimum and maximum operating temperatures, density, vapor pressure, and the presence of additives or suspended particles. API 610 guidance also supports evaluating suction conditions and net positive suction head to reduce cavitation risk. Keep a margin, but avoid excessive oversizing. Oversizing can increase recirculation, heat, and energy consumption.

In field work, the biggest error is often an optimistic flow estimate. A clean filter rarely stays clean. Measure pressure at the pump suction and discharge during real operation. Then challenge the calculation. The spreadsheet may still be wrong.

Compare Pump Materials, Configurations, and Drive Options

Choosing a centrifugal oil pump in 2026 starts with the fluid, not the catalog headline. In field inspections, oil temperature often changes faster than expected. A pump rated at 40°C may struggle near 90°C. Cast iron suits clean, moderate-temperature oils, but stainless steel offers better corrosion resistance. Duplex alloys can handle aggressive additives, although their cost needs evidence. Check shaft, casing, and impeller materials separately. They do not always match.

Configuration controls service life and maintenance access. An end-suction design is compact for simple transfer duties. A multistage arrangement provides higher pressure, but adds seals, stages, and alignment points. For heavy oil, wider passages and a slower impeller can reduce shear and blockage. A small strainer may protect the pump, yet it can starve the suction line when dirty. I have seen this mistake during commissioning. The gauge looked normal until the filter loaded.

Drive selection should match process variation. A fixed-speed motor works well when flow demand stays stable. A variable-frequency drive can trim flow and reduce throttling losses. It still needs proper cooling and harmonic review. Direct coupling usually improves efficiency, while belt drives offer layout flexibility. Engines may suit remote installations, but vibration and exhaust controls complicate maintenance. Confirm seal compatibility, starting torque, standby requirements, and electrical certification. Do not size from average flow alone. Peak viscosity can decide everything.

Evaluate Efficiency, Safety Features, Maintenance, and Compatibility

Choosing a centrifugal oil pump in 2026 starts with measured operating data, not catalog promises. The U.S. Department of Energy’s Improving Pumping System Performance sourcebook estimates pumping systems can consume about 25% of industrial electricity. Efficiency deserves serious attention. Select a duty point near the pump’s best efficiency point. Check flow, differential pressure, viscosity, temperature, and suction conditions together. A high-efficiency impeller may perform poorly after oil viscosity changes. Do not trust catalog efficiency alone. Record actual motor power during commissioning.

Safety features should match the oil and installation. Specify mechanical seals, guarded couplings, leak detection, bearing-temperature monitoring, and correctly sized pressure relief protection. API 610 and ISO 5199 provide useful engineering references for many industrial applications. However, compliance still depends on local electrical, fire, and workplace rules. A relief valve is not a substitute for inspection. Keep hot surfaces away from potential leaks, and verify emergency shutdown access beside the pump.

Compatibility is often underestimated. Confirm seal materials against the oil’s additives, operating temperature, and viscosity range. Check whether the casing, shaft, and elastomers resist corrosion and swelling. Maintenance records should include vibration trends, seal leakage, bearing noise, and startup current. The U.S. DOE Pumping System Assessment Tool supports lifecycle evaluation, not just purchase-price comparisons. That matters because a cheaper pump can create expensive throttling losses. My practical concern is simple: field data are often incomplete. Recheck assumptions after thirty operating days, when real wear and oil behavior become visible.

How to Choose a Centrifugal Oil Pump in 2026? - Evaluate Efficiency, Safety Features, Maintenance, and Compatibility

Pump Configuration	Typical Flow Range	Typical Head Range	Hydraulic Efficiency	Recommended Oil Service	Temperature Capability	Safety Features to Specify	Maintenance Profile	Compatibility Considerations	Best-Fit Application
Standard End-Suction Centrifugal Pump	5–500 m³/h	10–100 m	55–82% at best efficiency point	Low- to medium-viscosity lubricating oils, heat-transfer oils, and clean process oils	Typically up to 120°C, depending on seals, bearings, and materials	Guarded coupling, low-level shutdown, mechanical-seal leakage detection, motor overload protection	Inspect seals, bearings, alignment, and vibration every 1,000–2,000 operating hours; replace wear parts based on condition	Confirm viscosity correction, seal elastomer compatibility, corrosion resistance, and suction NPSH margin	General oil transfer, circulation, filtration, and tank-to-tank pumping
Self-Priming Centrifugal Pump	5–250 m³/h	10–80 m	45–75% at best efficiency point	Oil systems where the suction line may contain air or the pump must recover prime automatically	Typically up to 100–120°C, subject to casing and seal design	Dry-run protection, automatic low-level trip, relief path for blocked discharge, guarded rotating parts	Inspect the priming chamber, check valve, seals, and air-release passages more frequently than on standard end-suction designs	Allow for increased viscosity during cold start; verify that the suction lift and priming time meet the process requirement	Intermittent transfer from below-grade tanks, mobile skids, and systems with air-prone suction piping
Multistage Centrifugal Pump	2–300 m³/h	80–400 m	65–85% at rated conditions	Clean, low- to medium-viscosity oils requiring high discharge pressure	Typically up to 100–150°C, depending on stage construction and seal arrangement	High-discharge-pressure relief, minimum-flow bypass, bearing-temperature monitoring, vibration monitoring	Requires careful alignment, minimum-flow protection, stage inspection, and monitoring of axial thrust and bearing condition	Check viscosity impact on interstage pressure, seal pressure limits, pressure rating, and thermal expansion	High-pressure lubrication circuits, oil injection, boiler-feed-style thermal oil systems, and long-distance transfer
Magnetically Driven Sealless Pump	1–150 m³/h	5–100 m	40–75% at best efficiency point	Clean, hazardous, toxic, volatile, or environmentally sensitive oils where external leakage must be minimized	Typically up to 150–300°C, depending on containment shell, bearings, and fluid properties	Dry-run sensor, reverse-rotation detection, containment-shell monitoring, temperature monitoring, relief protection	Fewer external seal replacements, but internal bearings and containment components require clean fluid and condition monitoring	Verify magnetic torque capacity, fluid lubricity, solids content, vapor pressure, and compatibility with internal bearing materials	Leak-sensitive systems, hazardous-area service, chemical process oils, and sealed thermal-fluid circuits
API-Style Overhung Process Pump	5–1,500 m³/h	20–160 m	60–85% at best efficiency point	Continuous-duty hydrocarbon and process-oil service with demanding reliability requirements	Commonly up to 300°C or higher with an appropriate design and seal system	API-style containment, dual mechanical seals where required, bearing-temperature monitoring, vibration monitoring, fire-safe design options	Planned condition-based maintenance; monitor vibration, bearing temperature, seal leakage, alignment, and lubrication quality	Confirm pressure-temperature rating, hazardous-area motor requirements, metallurgy, seal plan, and applicable process-pump standards	Refineries, terminals, continuous process plants, and critical oil-transfer duties
Vertical Inline Centrifugal Pump	2–250 m³/h	5–120 m	50–80% at best efficiency point	Clean circulating oil where floor space is limited and piping alignment is straightforward	Typically up to 120–180°C, depending on seal, motor, and bearing configuration	Motor overload protection, dry-run protection, discharge pressure switch, coupling guard, high-temperature alarm	Compact installation simplifies access, but motor alignment, pipe strain, and seal inspection remain important	Check available NPSH, pipe support, thermal growth, viscosity at startup, and motor cooling conditions	Compact circulation loops, heater systems, machine-tool lubrication, and packaged equipment
High-Viscosity Centrifugal Pump with Variable-Speed Drive	5–300 m³/h	10–80 m	30–70%, strongly dependent on viscosity and speed	Warm oils and moderately viscous fluids where controlled flow is needed across changing operating conditions	Typically up to 150–250°C with suitable seals, bearings, and thermal management	Variable-speed limits, motor overload protection, minimum-flow control, high-temperature trip, suction-pressure monitoring	Monitor motor load, operating temperature, vibration, seal condition, and actual viscosity; avoid prolonged operation far from the duty point	Use viscosity-corrected pump curves; confirm startup torque, suction conditions, heat tracing, and seal compatibility	Blended oils, warm lubricants, heat-transfer systems, and processes with variable flow demand

Reference values are typical engineering ranges rather than guaranteed ratings. Final selection should be based on the pump curve at the actual flow, head, oil viscosity, density, vapor pressure, temperature, NPSH available, materials, seal plan, motor classification, and applicable local safety standards.

Select and Verify the Best Pump for Your 2026 Application

Choosing a centrifugal oil pump in 2026 starts with verification, not catalog browsing. Define flow, differential head, oil viscosity, temperature, density, and vapor pressure at real operating conditions. A pump rated for water may perform poorly with cold, heavy oil. It may also overload after warming. Small details matter.

The U.S. Department of Energy’s Pumping System Sourcebook reports that pumping systems can consume about 25% of industrial electricity. The International Energy Agency’s Energy Efficiency 2023 report also identifies motor-driven systems as major efficiency opportunities. Therefore, compare efficiency at the actual duty point, not only at best efficiency point. Check the performance curve, motor load, and speed range. Variable-speed control can help, but unstable control settings can create pressure swings.

Verify NPSHA against NPSHR with a practical margin. Account for suction filters, pipe friction, elevation, and the oil’s highest viscosity. Review seal compatibility, shaft stiffness, bearing life, and materials against the fluid and temperature. For petroleum service, use the applicable API 610 requirements and documented factory testing. Ask for certified curves and test records. A neat spreadsheet can still hide a wrong assumption. I have seen “normal” flow values fail during winter startup. Recheck the worst case, then confirm field measurements after commissioning.

How to Choose a Centrifugal Oil Pump in 2026?

Select and verify the best pump by checking the required flow, differential head, and oil viscosity at the actual operating temperature. The chart below shows representative centrifugal-pump performance for common industrial oil viscosities.

Selection example: For a duty point of approximately 20 m³/h and 30 m differential head, the 100 cSt curve is the closest initial match. Verify the final selection against the pump curve, motor power, operating temperature, NPSH available, seal compatibility, and the complete viscosity range.
